AI3070_-VP

TeeJet Air Induction Dual Pattern Flat Spray Tips

TeeJet Air Induction Dual Pattern Flat Spray Tips
larger imageMove mouse over the image to magnify
AI3070_-VP

TeeJet Air Induction Dual Pattern Flat Spray Tips

Enquire

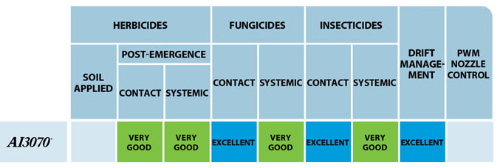

Typical Applications:
AI3070 Matrics-673

Features:
  • Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops.
  • AI3070 produces two wide angle, flat spray patterns for uniform coverage in broadcast applications.
  • 30° forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximises coverage of the crop seed head.
  • Drift resistant drops are produced through the use of a venturi air aspirator.
  • All acetal construction for excellent chemical and wear resistance.
  • Removable pre-orifice for fast and easy cleaning.
  • Suggested spray pressure range of 20–90 PSI (1.5–6 bar).
  • Automatic alignment with the use of 98579-1-NYR Quick TeeJet® cap and gasket.
Click Here for Specification Sheet

Range: AI3070-015VP  |  AI3070-02VP  |  AI3070-025VP  |  AI3070-03VP |  AI3070-04VP  |  AI3070-05VP
